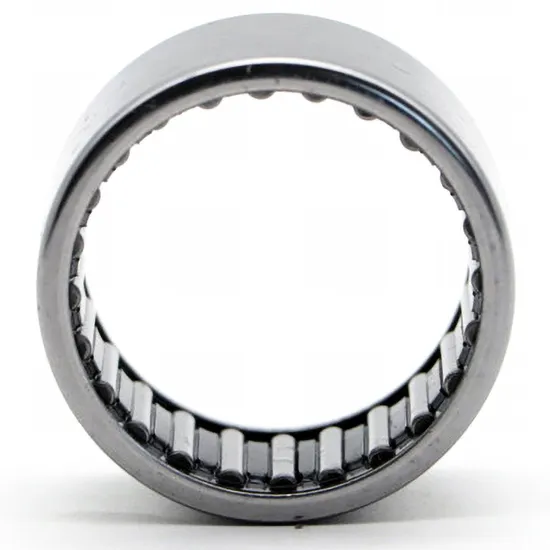

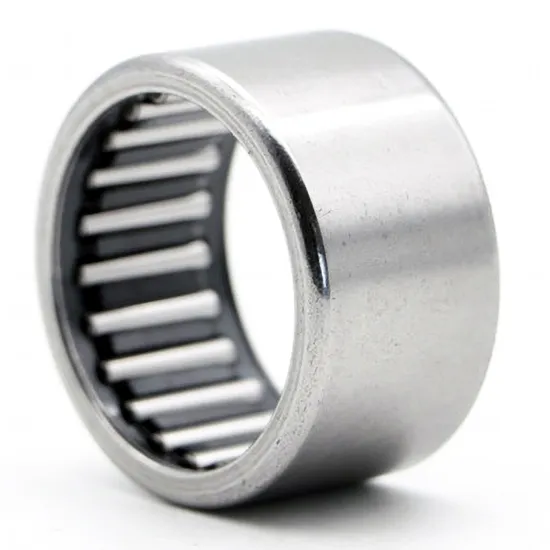

Bdl NK16/16 NK16/20 NK17/16 Needle Roller Bearings High Load Capacity
Specifications
| Bore Diameter | 16 mm |
| Outer Diameter | 24 mm |
| Width | 16 mm |
| Load Direction | Radial |
| Material | Bearing Steel |
| Sealed Type | Closed |
Description
NK16/16 needle roller bearing features high precision, radial load capacity, and compact design. Made of bearing steel with grease or oil lubrication, it suits industrial applications requiring durability and efficiency.
Basic Info.
Related Products
Specifications
| Bore Diameter | 35 mm |
| Outer Diameter | 47 mm |
| Width | 17 mm |
| Load Direction | Radial |
| Precision Rating | P0, P6, P5, P4, P2 |
| Clearance | C0, C3, C4 |
Description
Needle Roller Bearing RNA4906 made of bearing steel, designed without outer and inner rings for compact radial load applications. Suitable for high-precision machinery with grease or oil lubrication. OEM/ODM service available.
Specifications
| Bore Diameter | 32 mm |
| Outer Diameter | 42 mm |
| Width | 20 mm |
| Load Direction | Radial |
| Precision Rating | P0, P6, P5, P4, P2 |
| Lubrication | Grease or Oil |
Description
Needle Roller Bearing 624705, made of high-quality bearing steel, features a compact design without inner or outer ring. Suitable for radial load applications with high precision and reliability. Available in various clearance options (C0, C3, C4), ideal for industrial machinery and automotive systems.
Specifications
| Bore Diameter | 185 mm |
| Outer Diameter | 215 mm |
| Width | 45 mm |
| Load Direction | Radial Bearing |
| Precision Rating | P0, P6, P5, P4, P2 |
| Clearance | C0, C3, C4 |
Description
Needle Roller Bearing RNA4834 made of Bearing Steel, without inner and outer rings, suitable for radial load applications. Features high precision (P0-P2), multiple clearance options, and can be lubricated with grease or oil. Ideal for OEM/ODM use with efficient 3-7 days delivery.
Specifications
| Bore Diameter | 45 mm |
| Outer Diameter | 68 mm |
| Width | 40 mm |
| Load Direction | Radial Bearing |
| Precision Rating | P0, P6, P5, P4, P2 |
| Clearance | C0, C3, C4 |
Description
Needle Roller Bearing NA6909 made of Bearing Steel, without outer and inner ring, suitable for radial load applications. Offers high precision (P0-P2), multiple clearance options, and can be lubricated with grease or oil. Ideal for compact machinery with OEM/ODM support.
Specifications
| Bore Diameter | 22 mm |
| Outer Diameter | 30 mm |
| Width | 13 mm |
| Load Direction | Radial |
| Material | Bearing Steel |
| Precision Rating | P0, P6, P5, P4, P2 |
Description
Needle roller bearing RNA4903, model BDL, made of bearing steel, without inner or outer ring, closed type. Suitable for radial load applications, lubricated with grease or oil. Precision grades available from P0 to P2.
Specifications
| Bore Diameter | 30 mm |
| Outer Diameter | 47 mm |
| Width | 17 mm |
| Model NO. | NA4906 |
| Material | Bearing Steel |
| Lubrication | Grease or Oil |
Description
Needle Roller Bearing NA4906, made of high-quality bearing steel, features radial load direction and closed type design. Suitable for precision applications with clearance options C0, C3, C4. Ideal for OEM/ODM use.
Specifications
| Bore Diameter | 55 mm |
| Outer Diameter | 80 mm |
| Width | 45 mm |
| Load Direction | Radial Bearing |
| Precision Rating | P0, P6, P5, P4, P2 |
| Lubrication | Grease or Oil |
Description
The NA6911 Needle Roller Bearing features a compact design with high load capacity. Made from premium bearing steel, it operates efficiently under radial loads. Suitable for industrial applications requiring precision and durability. Available with OEM/ODM support and fast delivery.
Specifications
| Bore Diameter | 120 mm |
| Outer Diameter | 165 mm |
| Width | 45 mm |
| Model NO. | NA4924 |
| Material | Bearing Steel |
| Lubrication | Grease or Oil |
Description
Needle Roller Bearing NA4924, made of high-quality bearing steel, features radial load direction and closed type design. Suitable for precision applications with clearance options C0, C3, C4. Ideal for industrial machinery requiring compact and durable bearings.
Specifications
| Bore Diameter | 360 mm |
| Outer Diameter | 440 mm |
| Width | 80 mm |
| Material | Bearing Steel |
| Load Direction | Radial Bearing |
Description
Needle Roller Bearing NA4872, made of high-quality bearing steel, features radial load direction and precise performance. Available with OEM/ODM service, this closed-type bearing offers P0-P2 precision ratings and C0-C4 clearance options, ideal for industrial applications.
Specifications
| Bore Diameter | 110 mm |
| Outer Diameter | 140 mm |
| Width | 30 mm |
| Load Direction | Radial Bearing |
| Precision Rating | P0, P6, P5, P4, P2 |
| Clearance | C0, C3, C4 |
Description
Needle Roller Bearing NA4822, made of high-quality bearing steel, features a compact design without inner or outer rings. Suitable for radial load applications, it offers multiple precision and clearance options, ideal for OEM/ODM use in various industrial environments.
Specifications
| Model | RNA4852 |
| Dimensions | 285*320*60 mm |
| Load Direction | Radial Bearing |
| Material | Bearing Steel |
| Lubrication | Grease or Oil |
| Precision Rating | P0, P6, P5, P4, P2 |
Description
The RNA4852 needle roller bearing features a closed design without inner or outer rings, made of high-quality bearing steel. Ideal for radial load applications, it offers multiple precision and clearance options, suitable for OEM/ODM use with reliable performance and fast delivery.
Specifications
| Bore Diameter | 70 mm |
| Outer Diameter | 100 mm |
| Width | 30 mm |
| Material | Bearing Steel |
| Load Direction | Radial |
| Precision Rating | P0, P6, P5, P4, P2 |
Description
Needle Roller Bearing NA4914, made of high-quality bearing steel, features a radial load direction and precision ratings from P0 to P2. Ideal for compact designs without inner or outer rings, suitable for grease or oil lubrication.
