FAG bearings selected for the operating condition, not just the size.

For quarries, cement plants, mines, conveyors, cranes and gearboxes. Heavy Industrial Machinery Company checks load direction, misalignment, lubrication and clearance before quoting genuine FAG bearings in original Schaeffler packaging.

Send Your Overhaul List → WhatsApp a FAG number
Maintenance crew lifting a large spherical roller bearing onto a crusher shaft during an overhaul FIG. 1 — Shaft position on a planned overhaul

§ A · Applications

FAG bearing applications we quote for

We supply FAG bearings and mounting parts for six recurring heavy-duty duties. Pick your equipment to see typical bearing positions, the details we confirm and the FAG series involved.

Scroll sideways →

Jaw crusher working in a dusty quarry 01Quarry crushersShock load, dust → Large rotating ball mill in a cement plant 02Cement millsHeavy load, urgent restarts → Mining maintenance workshop with haulage equipment under repair 03Mining maintenanceProgramme volumes → Belt conveyor drive pulley and gear motor 04Conveyor drivesMisalignment, repeat failures → Overhead crane lifting steel in a material handling yard 05Cranes & material handlingCombined loads → Open industrial gearbox showing shafts and gears 06Gearbox transmissionsSpecial executions →

§ B · Application detail

What we confirm for each heavy machinery application

Each duty has its own failure modes, so each enquiry gets its own checklist. Below: typical bearing positions, the points we confirm before quoting, the related FAG series, and what buyers in that field told us.

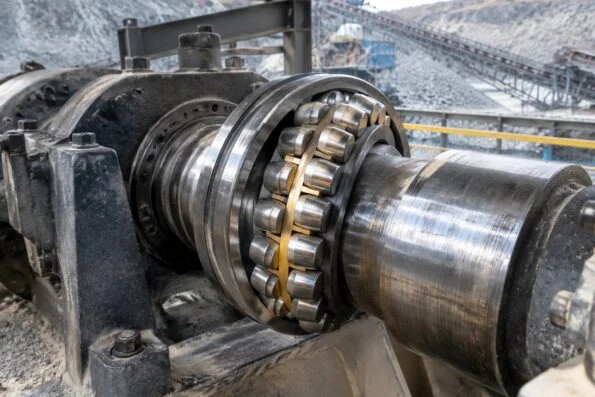

Spherical roller bearing seated on a crusher main shaft in a quarry workshop 01 — Quarry crusher

Quarry crushers: clearance and sealing decide service life

Crusher bearings run under shock load in heavy dust. Matching the bore is not enough; radial clearance and the mounting arrangement must suit the shaft temperature and fit.

TYPICAL POSITIONS
Main / eccentric shaft, flywheel side and drive side, drive motor DE / NDE
RELATED FAG SERIES
Spherical roller bearings; housings and adapter sleeves
  • C4 clearance
  • Shock load
  • Dust sealing
  • Tapered bore + sleeve

“They confirmed the C4 clearance we needed and the bearing temperature has stayed normal through the season.”

Oleg Petrov · Petrov Quarry Operations, Russia · ★5.0
Cement mill drive shaft with bearing housing opened for replacement 02 — Cement mill

Cement mills: identify the exact reference fast

When a mill bearing fails, the old ring is often worn and the suffix unreadable. We work from what remains: the partial number, dimensions, the position and the mill model.

TYPICAL POSITIONS
Mill drive shaft, main gearbox shafts, drive motor DE / NDE
RELATED FAG SERIES
Spherical roller bearings; cylindrical roller bearings
  • Full suffix
  • Worn nameplate
  • Execution version
  • Required date

“We sent the worn FAG number by WhatsApp and they identified the correct reference within hours.”

Ahmed Hassan · Hassan Cement Industries, Egypt · ★4.9

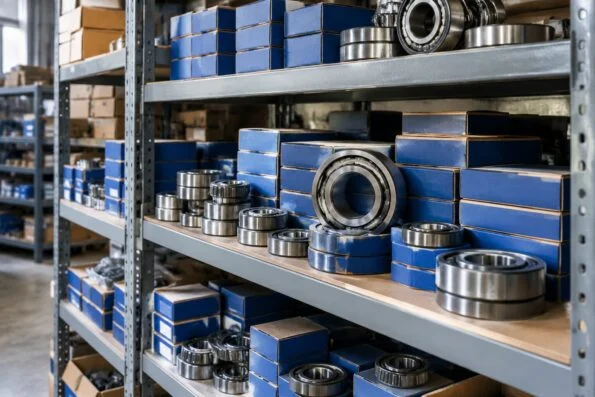

Boxed roller bearings stacked on shelves in a mine maintenance store 03 — Mining maintenance

Mining maintenance: consistent references, clean paperwork

Maintenance programmes buy the same positions again and again. Each line is quoted with the same full reference, and the original Schaeffler packaging and documents travel with the goods for customs.

TYPICAL POSITIONS
Conveyor pulleys, pumps, fans, motors across the plant fleet
RELATED FAG SERIES
Spherical and cylindrical roller bearings; deep groove ball bearings; housings
  • Repeat-order match
  • Quantities per line
  • Supporting documents

“The Schaeffler packaging was genuine throughout. Customs clearance at the port went through without holds.”

Andres Castillo · Castillo Minería S.A., Chile · ★4.9

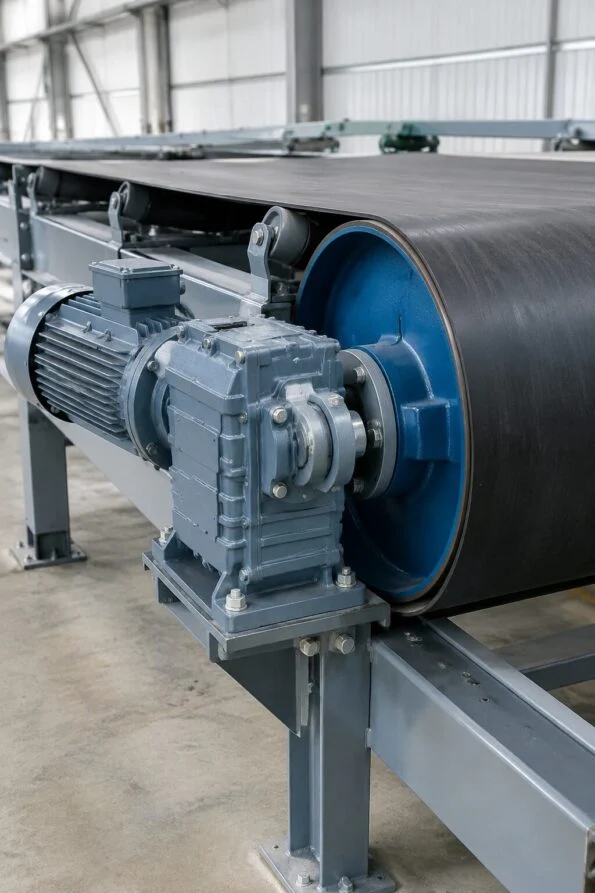

Conveyor drive pulley with pillow block housings on a steel frame 04 — Conveyor drive

Conveyor drives: stop the repeat failure

Long frames flex and pulleys run out of line. If the last bearing failed early, the same reference may fail again. We ask about load, misalignment and lubrication before confirming the series.

TYPICAL POSITIONS
Drive and tail pulleys, reducer shafts, motor DE / NDE
RELATED FAG SERIES
Spherical roller bearings; housings, adapter sleeves
  • Misalignment
  • Load direction
  • Lubrication

“Their engineer asked about load direction, misalignment and lubrication before confirming the FAG series. That prevented a repeat failure on our conveyor drive.”

Victor Ionescu · Ionescu Heavy Industry, Romania · ★5.0

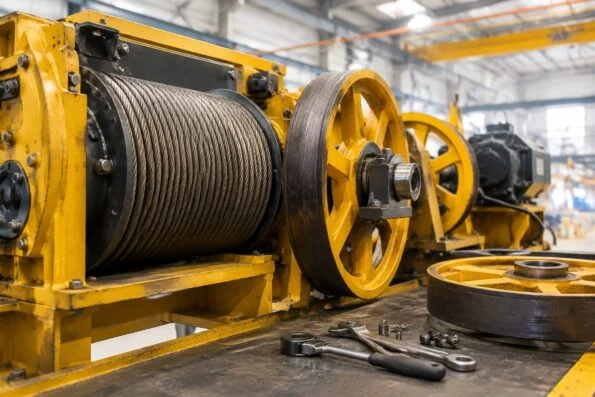

Crane hoist drum and wheel assembly being serviced 05 — Crane / material handling

Cranes and material handling: combined loads, exact fit

Hoists and travel wheels carry radial and axial load together. Tapered roller arrangements must match the specified execution so the fit measured on site matches the catalogue.

TYPICAL POSITIONS
Hoist drum, travel wheels, slewing and hook blocks
RELATED FAG SERIES
Tapered roller bearings; thrust bearings
  • Radial + axial load
  • Paired arrangement
  • Fit to specification

“Our engineer measured the fit on arrival and it matched the catalogue. The crane has run without issues since.”

Hugo Larsson · Larsson Kran Service, Sweden · ★5.0
Industrial gearbox shafts with cylindrical roller bearings on a workbench 06 — Gearbox transmission

Gearbox transmissions: special execution is not a size

Gearbox specifications often call for a special execution: cage, clearance or ring design. A bearing of the same dimensions does not prove it suits the gearbox, so we check the full designation for each shaft.

TYPICAL POSITIONS
Input, intermediate and output shafts; fixed and floating ends
RELATED FAG SERIES
Cylindrical roller bearings; tapered roller bearings; angular contact bearings
  • Special execution
  • Cage and clearance
  • Axial location

Send the gearbox model and the bearing reference for each shaft.

Send your gearbox list →

§ C · Selection dialogue

Three questions we ask before confirming a FAG series

Before we confirm a FAG series, we ask about load direction, misalignment and lubrication. Your answers decide whether the listed reference is right or needs a change you approve.

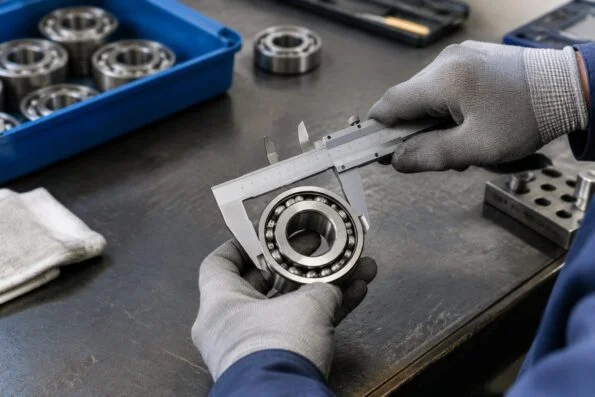

Engineer measuring a roller bearing with a caliper at a workbench
F

01 · LOAD DIRECTION

Is the load at this position mainly radial, mainly axial, or both? Any shock loads at start-up or from the process?

WHY IT MATTERS

Combined loads point to tapered roller or angular contact designs; heavy radial and shock loads point to spherical or cylindrical roller bearings.

F

02 · MISALIGNMENT

Does the shaft deflect under load, or are the housings on separate frames that can move out of line?

WHY IT MATTERS

Self-aligning designs such as spherical roller bearings tolerate angular misalignment. Rigid designs in a misaligned position wear early.

F

03 · LUBRICATION & CLEARANCE

Grease or oil? How hot does the position run, and how much dust or water reaches it?

WHY IT MATTERS

Temperature and fit affect the internal clearance you need, such as C3 or C4. Contamination affects the seal or shield version.

Discuss your application on WhatsApp →

§ D · Planned overhauls

How to structure a FAG overhaul list

Write one line per bearing position, with DE and NDE kept apart and every housing and sleeve on its own line. That way quantities, positions and assemblies are checked before the quote, not on site.

  1. 01Split by positionDrive end and non-drive end on separate lines, even if the reference is the same.
  2. 02Write the full designationInclude the suffix for seal, clearance and execution, not a shortened stock code.
  3. 03List mounting parts separatelyAdapter sleeves, housings and related components, each with its own quantity.
  4. 04Mark accepted alternativesAny alternative is listed separately and needs your approval.
  5. 05Add date and destinationShutdown date, destination country and postcode for the written quote.
OVERHAUL LIST — SAMPLE LAYOUTREV. A
LinePositionReferenceQty
1Conveyor drive pulley, DE22220-E1-XL-K-C41
2Conveyor drive pulley, NDE22220-E1-XL-K-C41
3Pulley mounting, DE + NDEH320 adapter sleeve2
4Pulley mounting, DE + NDESNV housing2
5Drive motor, DE6205-2RSR1
6Drive motor, NDE6205-2RSR1
7Reducer input shaftNU2216-E-XL-TVP21

Sample designations for layout only. Your list is checked line by line before quoting.

“This supplier has delivered correct executions consistently for a year, and the paperwork supports our client reporting.”

Jan van Wyk · van Wyk Heavy Services, South Africa · ★5.0

§ E · FAG range

FAG bearings and mounting parts for these applications

Browse by bearing family, or open a listed reference. 2,952 FAG references are listed online; others can be quoted by enquiry.

View all FAG bearings →

Deep Groove Ball Bearing

942 models

Angular Contact Ball Bearing

365 models

Pillow Block Bearing

321 models

Cylindrical Roller Bearing

317 models

Taper Roller Bearing

289 models

Needle Bearing

137 models

Recently listed FAG references

NSK 1305/1305TNi Self-Aligning Ball Bearings for Heavy & Impact Loads
Self-Aligning Ball Bearing

NSK 1305/1305TNi Self-Aligning Ball Bearings for Heavy & Impact Loads

Get quote →
Koyo NTN NACHI 6004 Deep Groove Ball Bearing – ZZ/2RS/DDU, High-Precision for Motors & Transmissions
Deep Groove Ball Bearing

Koyo NTN NACHI 6004 Deep Groove Ball Bearing – ZZ/2RS/DDU, High-Precision for Motors & Transmissions

Get quote →
6088 Deep Groove Ball Bearing – Durable Timken/NSK/IKO/Koyo/NTN
Deep Groove Ball Bearing

6088 Deep Groove Ball Bearing – Durable Timken/NSK/IKO/Koyo/NTN

Get quote →
Timken & NACHI Tapered Roller Bearings 33211/33011/33114/32910 – High-Precision, Heavy-Duty
Taper Roller Bearing

Timken & NACHI Tapered Roller Bearings 33211/33011/33114/32910 – High-Precision, Heavy-Duty

Get quote →
UCFL217/UCFL218/UCFL218-56 Pillow Block Bearing – High-Load, Pre-Lubricated, Ready to Install
Pillow Block Bearing

UCFL217/UCFL218/UCFL218-56 Pillow Block Bearing – High-Load, Pre-Lubricated, Ready to Install

Get quote →
Micro Deep Groove Ball Bearings 676-679 – High-Precision NSK/Timken/NTN
Angular Contact Ball Bearing

Micro Deep Groove Ball Bearings 676-679 – High-Precision NSK/Timken/NTN

Get quote →
R165141420 Rexroth Flange Linear Guide Rail Block Bearing
Angular Contact Ball Bearing

R165141420 Rexroth Flange Linear Guide Rail Block Bearing

Get quote →
R165151210 Rexroth Flange Linear Guide Rail – High-Precision Slide Block Bearing
Angular Contact Ball Bearing

R165151210 Rexroth Flange Linear Guide Rail – High-Precision Slide Block Bearing

Get quote →

§ F · Written quote

Send Your Overhaul List

Send the equipment model, full FAG references, positions and quantities. Heavy Industrial Machinery Company confirms the execution and the complete assembly with you, then issues a written quote.

  1. 01We confirm execution, clearance, DE / NDE positions and mounting parts.
  2. 02The written quote states references, quantities, price and currency, stock status, estimated lead time, validity and applicable terms.
  3. 03The quote also states which product documents can be supplied with original Schaeffler packaging.
  4. 04On arrival, check labels, quantities and condition. If anything differs, send the order number and photos.

ENQUIRY SHEET

Request a written FAG quote

Any technical change to your listed references is proposed separately and needs your approval.
